Quick Details

  • Place of Origin: Maharashtra, India
  • Brand Name: KRISH
  • Model Number: 309
  • Type: Analog Camera
  • Style: Box Camera
  • Sensor: CMOS
  • Technology: NetWork, Infrared and white light optional
  • Special Features: Waterproof / Weatherproof
  • Image Sensor: 1/3" CMOS
  • Resolution: 1920 x 1080 2 MP
  • Lens: 5 - 50 mm Motorized Zoom and Focus Lens opional
  • Speed For Car: 50 - 120 km / h
  • Power Supply: DC 12 V (±10%)
  • Waterproof: IP 66

Packaging & Delivery

Packaging Details Card Board Box.
Delivery Time 15 Days After Receiving Payment

Quick Details:

Style: Bullet Camera.

Type: Video Camera.

Sensor:  CCD,1/3" SONY SUPER HAD ii CCD.

Technology: Infra Red.

Special Features: Waterproof / Weatherproof.

Lens: 9-22mm manual iris lens.

Horizontal resolution: 600 TV Lines.

IR LEDs:  36 pcs Powerful IR.

IR distance:  50m IR night vision.

Built with: IR Cut Filter.

Specifications:

600TVL Hi-Res Car Number Plate Recognition Camera LPR Camera.

9~22mm Verifocal lens.

36pcs IR LEDs, 50M IR.

With IR Cut Filter.

OUTSTANDING FEATURES :

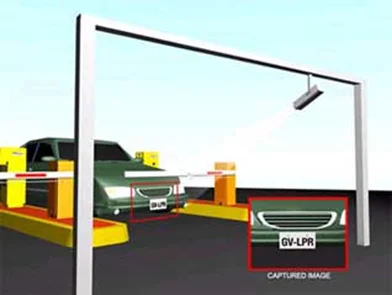

•  This camera is specially designed for foreign car license plate.
•  With IR Cut Filter, it can capture the vehicle plates even the light is very strong.
•  The Powerful IR LEDs can be pulsed to reduce power consumption.
•  Car number can be seen very clearly, even the vehicle moving at 180km/h.





Main Features:

* 1/3" SONY SUPER HAD CCD, 600 TV Lines.

* 36 pcs F8 IR LEDs.

* 9-22mm lens, IR distance 50m.

* PWM Control.

* With IR Cut Filter, Strong light Restraint Function.

* Support CCIR656 output.

* 8 levels of electronic shutter adjust.

* Ultra low LUX CCD sensor.

* Support AGC, AWBBLC and mirror function.

* High Sensitivity, low smear, high anti-blooming, high S/N Ratio.

* Built-in iDNR engine, noise reduction, 5 environment adaptive modes.

Specifications:

1. Sensor: 1/3" SONY SUPER HAD II CCD.

2. TV Lines: 600 TVL.

3. Resolution: NTSC: 768 x 494, PAL:752 x 582(H x V).

4. Min illumination: 0 LUX @F2.0.

5. S/N ratio: > 52 dB.

6. AES: 8 levels adjustable.

7. Lens: 9-22 mm.

8. Synchronization System: internal.

9. White balance: ATW.

10. Gamma: 0.45.

11. AGC: ON.

12. Mirror fuction: On/OFF.

13. AGC MAX: ON.

14. BLC: ON.

15. Color Rolling: ON/OFF.



Lens

5~50mm Motorized Zoom and Focus lens

6~60mm AI IR corrected lens

5~50mm AI IR corrected lens

Sensor

HD 2.0Megapixel ,SONY Low Lux CMOS

Video output

AHD signal

Resolution

1920*1080P resolution

IR-Cut

Yes

SNR

50dB(AGC OFF)

Led

4pcs white or IR LEDs array,brightness adjustable

Capture mode

Modes1-6 selectable, display in the monitor

Adjust mode

Local cable or RS485

Vehicle Speed

More than 50km/h, Less than 120km/h

Capture Distance

Less than 30m

Day/Night mode

Auto switch

Power Supply

DC12V(±10%)

Consumption

12W(Leds on, heater working)

Work environment

-30℃~70,20%~90% RH

Temperature control

Heater works at –5(optional), fan works at  45

Waterproof

IP66

Dimension

300x125x110mm

Weight

1500g
